Overview

This tutorial shows how to use the topic labeling functions label_topics(), prob_topic(), frex_topic(), lift_topic(), and score_topic() using the Xenium spatial transcriptomics example (see results in the Xenium Example page). The goal is to fit a topic model, extract the topic-word probability matrix and related inputs, apply the labeling functions, and visualize the results for selected topics.

Data Preprocessing

We load the packages needed for this tutorial and source the file that contains the topic labeling functions.

library(SpaTopic)
library(dplyr)
library(tidyr)
library(tidyverse)
library(patchwork)
library(ggplot2)
library(rlang)
library(packcircles)
library(forcats)
library(scales)
library(purrr)
library(tibble)
load(file = "/Users/nikkixiaomengqi/Documents/research/sample1.spatopic_result_topics6.rdata")

beta_mat <- t(as.matrix(spatopic.res$Beta))
vocab <- rownames(spatopic.res$Beta)
wordcounts <- rowSums(spatopic.res$Nwk) # Total frequency of each cell type across all topics

Let’s check the inputs:

The matrix beta_mat should be a topic-by-feature probability matrix, where each row represents a topic and each column represents a feature. In this Xenium example, the features correspond to cell type labels. The vector vocab should contain the names of these features, and its length must match the number of columns of beta_mat. The vector wordcounts should contain the total frequency of each feature across the dataset, and its length must also match the number of columns of beta_mat. Additionally, each row of beta_mat should sum to 1, since it represents a probability distribution over features for a given topic.

dim(beta_mat)
#> [1]  6 20
length(vocab)
#> [1] 20
length(wordcounts)
#> [1] 20

ncol(beta_mat) == length(vocab)
#> [1] TRUE
ncol(beta_mat) == length(wordcounts)
#> [1] TRUE
rowSums(beta_mat)[1:5]
#> topic1 topic2 topic3 topic4 topic5
#>      1      1      1      1      1

Label Topics Functions

Labeling Methods

The label_topics() function ranks features using four methods:

Highest Probability

For each topic, features are ranked by their probability within that topic. The top features with the largest probabilities are selected.

\[ \text{Probability}_{k,v} = \beta_{k,v} \]

where \(\beta_{k,v}\) is the probability of feature \(v\) in topic \(k\).

FREX

FREX combines frequency and exclusivity using a weighted harmonic mean. Frequency is the word probabilities ranked and scaled to values between 0 and 1. Then exclusivity is computed by dividing each feature’s probability by its total probability across topics, followed by ranking and scaling within each topic.

\[ \text{FREX}_{k,v} = \left( \frac{w}{F_{k,v}} + \frac{1-w}{E_{k,v}} \right)^{-1} \]

where:

  • \(F_{k,v}\) = frequency rank of feature \(v\) in topic \(k\)
  • \(E_{k,v}\) = exclusivity rank of feature \(v\) in topic \(k\)
  • \(w\) = user-defined weight (default = 0.5)

Lift

Lift compares a feature’s topic probability to its overall frequency in the dataset.

First compute:

\[ p_v = \frac{\text{count}_v}{\sum_v \text{count}_v} \]

Then:

\[ \text{Lift}_{k,v} = \frac{\beta_{k,v}}{p_v} \]

Score

The score is computed by first taking the logarithm of the topic-word probabilities. Then calculate the average log probability across all topics for each word to represent its overall baseline level. For each topic and word, compute the difference between its log probability in that topic and its average log probability, and multiply by beta to get the final score.

\[ \text{Score}_{k,v} = \beta_{k,v} \left( \log \beta_{k,v} - \frac{1}{K}\sum_{k'=1}^{K}\log \beta_{k',v} \right) \]

where \(K\) is the number of topics.

Now, we apply the main labeling function label_topics() to get the top features for each topic. The output is a list containing results from four labeling methods: highest probability, FREX, lift, and score. We only show the results of topic 1 here, you can change it to the topic you want to rank, or by default it will calculate top 10 topics like we set above. The function computes topic labels using all four methods at once, and returns the top-ranked words for each topic. Unlike the helper functions used later, it only returns the rankings and does not provide the underlying values for each metric.

results <- label_topics(beta_mat, vocab, wordcounts)

results$prob[,1] # highest prob
#> [1] "DCIS_2"         "Myoepi_KRT15+"  "Myoepi_ACTA2+"  "DCIS_1"
#> [5] "Macrophages_1"  "Unlabeled"      "Invasive_Tumor" "CD8+_T_Cells"
results$frex[,1] # frex
#> [1] "DCIS_2"                "Myoepi_KRT15+"         "Myoepi_ACTA2+"
#> [4] "DCIS_1"                "Macrophages_1"         "CD8+_T_Cells"
#> [7] "Invasive_Tumor"        "T_Cell_&_Tumor_Hybrid"
results$lift[,1] # lift
#> [1] "DCIS_2"                "Myoepi_KRT15+"         "Myoepi_ACTA2+"
#> [4] "DCIS_1"                "Macrophages_1"         "Unlabeled"
#> [7] "T_Cell_&_Tumor_Hybrid" "CD8+_T_Cells"
results$score[,1] # score
#> [1] "DCIS_2"                "Myoepi_KRT15+"         "Myoepi_ACTA2+"
#> [4] "DCIS_1"                "Macrophages_1"         "Invasive_Tumor"
#> [7] "CD8+_T_Cells"          "T_Cell_&_Tumor_Hybrid"

We now use the helper functions to extract the top 10 features and their values for Topic 1 under each labeling method.

topic_id <- 1
top_n <- 10

prob_t1 <- prob_topic(beta_mat, vocab, topic = topic_id, top_n = top_n)
prob_t1
#>    rank                  word         prob
#> 1     1                DCIS_2 0.6632093984
#> 2     2         Myoepi_KRT15+ 0.1051923573
#> 3     3         Myoepi_ACTA2+ 0.1040562871
#> 4     4                DCIS_1 0.0478724503
#> 5     5         Macrophages_1 0.0457035889
#> 6     6             Unlabeled 0.0145132972
#> 7     7        Invasive_Tumor 0.0105886909
#> 8     8          CD8+_T_Cells 0.0073353989
#> 9     9 T_Cell_&_Tumor_Hybrid 0.0008804544
#> 10   10     Perivascular-Like 0.0002607798

frex_t1 <- frex_topic(beta_mat, vocab, topic = topic_id, top_n = top_n, frex_weight = 0.5)
frex_t1
#>                     word      frex
#> 1                 DCIS_2 1.0000000
#> 2          Myoepi_KRT15+ 0.9500000
#> 3          Myoepi_ACTA2+ 0.9000000
#> 4                 DCIS_1 0.8242424
#> 5          Macrophages_1 0.8242424
#> 6           CD8+_T_Cells 0.6740741
#> 7         Invasive_Tumor 0.6740741
#> 8  T_Cell_&_Tumor_Hybrid 0.6666667
#> 9              Unlabeled 0.6666667
#> 10     Perivascular-Like 0.5500000

lift_t1 <- lift_topic(beta_mat, vocab, wordcounts, topic = topic_id, top_n = top_n)
lift_t1
#>                     word       lift
#> 1                 DCIS_2 8.61048308
#> 2          Myoepi_KRT15+ 6.17103976
#> 3          Myoepi_ACTA2+ 2.46659563
#> 4                 DCIS_1 0.68749805
#> 5          Macrophages_1 0.68624916
#> 6              Unlabeled 0.28466694
#> 7  T_Cell_&_Tumor_Hybrid 0.25080245
#> 8           CD8+_T_Cells 0.17733908
#> 9         Invasive_Tumor 0.05168356
#> 10     Perivascular-Like 0.05165718

score_t1 <- score_topic(beta_mat, vocab, topic = topic_id, top_n = top_n)
score_t1
#>                     word         score
#> 1                 DCIS_2  5.495172e+00
#> 2          Myoepi_KRT15+  7.741304e-01
#> 3          Myoepi_ACTA2+  5.049247e-01
#> 4                 DCIS_1  1.906234e-01
#> 5          Macrophages_1  5.508066e-02
#> 6         Invasive_Tumor  2.525973e-02
#> 7           CD8+_T_Cells  2.732292e-03
#> 8  T_Cell_&_Tumor_Hybrid  3.957292e-04
#> 9  Prolif_Invasive_Tumor  8.964951e-05
#> 10            LAMP3+_DCs -5.456373e-06

Visualization

Heatmap

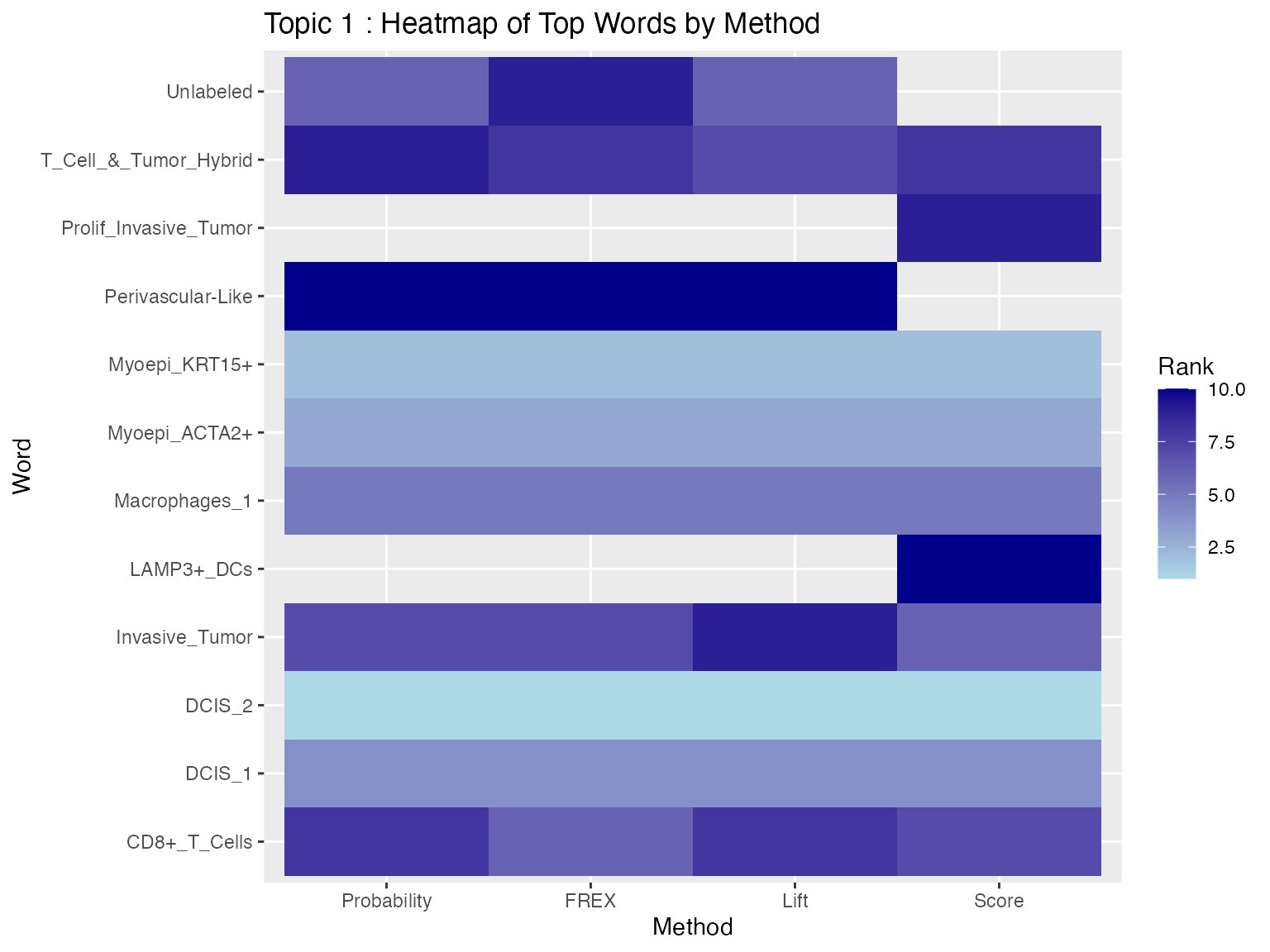

We now visualize the results using a heatmap, which shows each method on the x-axis and the top features on y-axis for Topic 1. The lighter color represent higher-ranked features, while darker colors represent lower-ranked features. Blank spaces indicate that a word does not appear in the top 10 for that method.

# first we create a data frame that combined the top 10 words from each method
heat_data <- bind_rows(
  prob_t1  %>% transmute(word, method = "Probability", value = prob),
  frex_t1  %>% transmute(word, method = "FREX", value = frex),
  lift_t1  %>% transmute(word, method = "Lift", value = lift),
  score_t1 %>% transmute(word, method = "Score", value = score)
)

heat_data$method <- factor(
  heat_data$method,
  levels = c("Probability", "FREX", "Lift", "Score") # set x axis method order
)

# rank words within each method, rank = 1 is the highest value
heat_data_ranked <- heat_data %>%
  group_by(method) %>%
  mutate(rank = rank(-value, ties.method = "first")) %>%
  ungroup()

ggplot(heat_data_ranked, aes(x = method, y = word, fill = rank)) +
  geom_tile() +
  scale_fill_gradient(low = "lightblue", high = "darkblue") +
  labs(
    title = paste("Topic", topic_id, ": Heatmap of Top Words by Method"),
    x = "Method",
    y = "Word",
    fill = "Rank"
  )

Scatter Plot

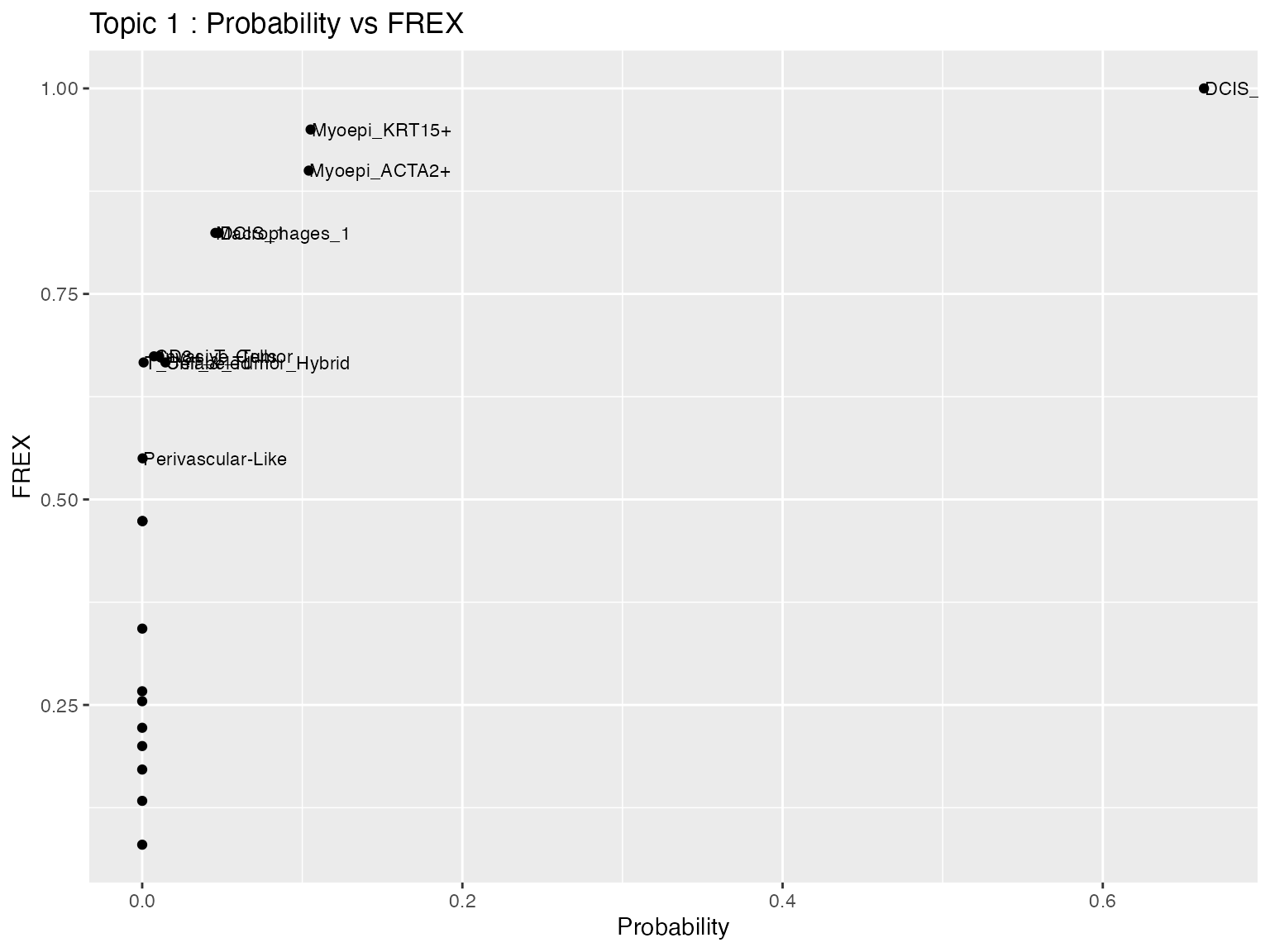

We next compare two labeling methods directly using a scatter plot. In this example, the x-axis shows the Probability values and the y-axis shows the FREX values for all features in Topic 1. Each point represents one feature, and selected features are labeled for easier interpretation.

scatter_data <- full_join(
  prob_topic(beta_mat, vocab, topic = topic_id),
  frex_topic(beta_mat, vocab, topic = topic_id, frex_weight = 0.5),
  by = "word"
)

top_words <- union(prob_t1$word, frex_t1$word)

scatter_data$label <- ifelse(scatter_data$word %in% top_words,
                             scatter_data$word, "")

ggplot(scatter_data, aes(x = prob, y = frex)) +
  geom_point() +
  geom_text(aes(label = label), hjust = 0, nudge_x = 0.0005, size = 3) +
  labs(
    title = paste("Topic", topic_id, ": Probability vs FREX"),
    x = "Probability",
    y = "FREX"
  )

Bar plot

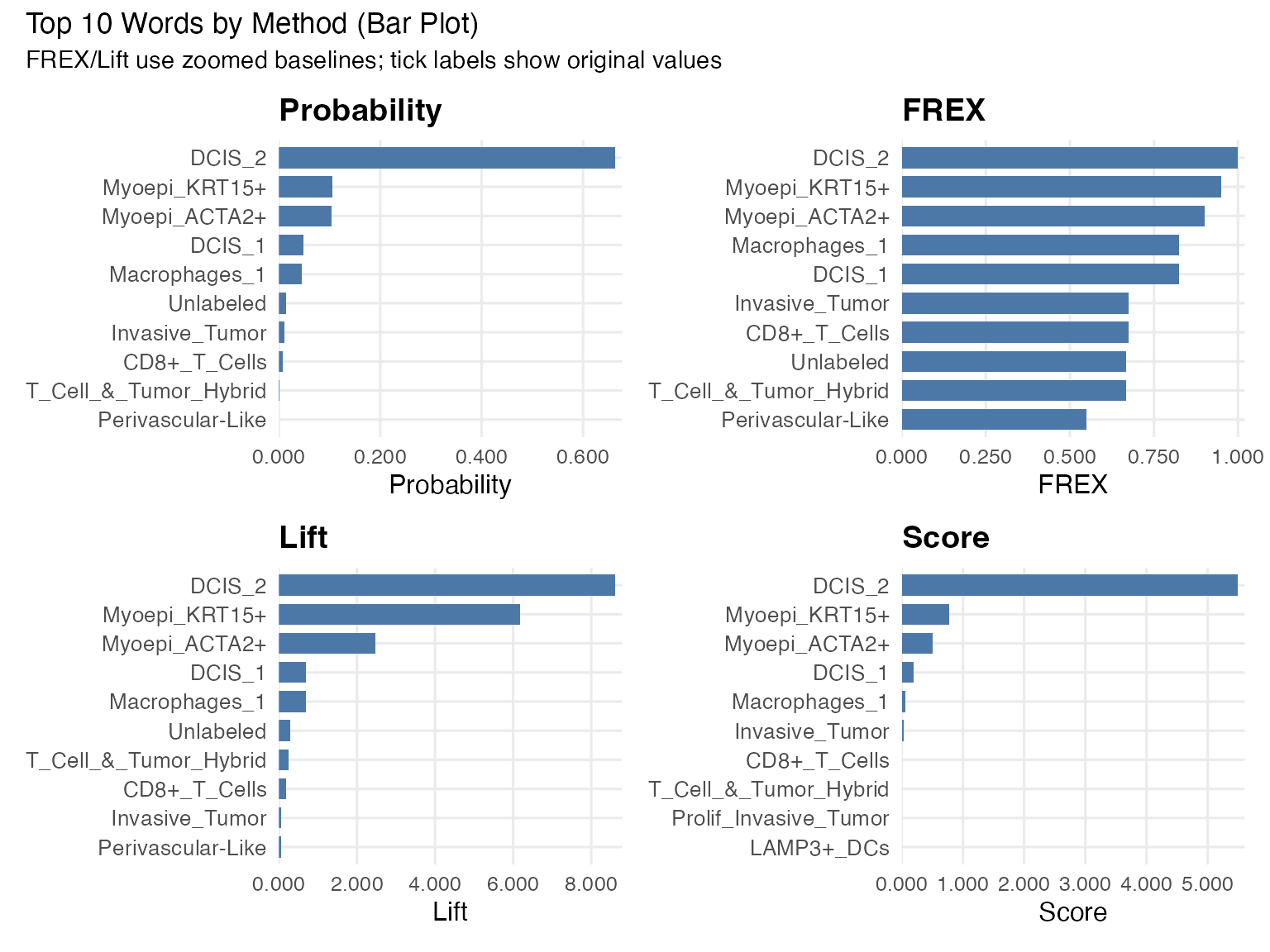

We use faceted bar plots to compare top words under each method. This is easier to read than stacking all methods in one bar because each metric has its own scale.

make_zoom_bar <- function(df, value_col, title, y_lab, zoom_min = 0, zoom_max = NULL, n = 10) {
  value_col <- ensym(value_col)

  plot_df <- df %>%
    slice_max(order_by = !!value_col, n = n, with_ties = FALSE) %>%
    arrange(!!value_col) %>%
    mutate(plot_val = !!value_col - zoom_min)

  if (is.null(zoom_max)) {
    zoom_max <- max(pull(plot_df, !!value_col), na.rm = TRUE)
  }

  ggplot(plot_df, aes(x = reorder(word, !!value_col), y = plot_val)) +
    geom_col(width = 0.72, fill = "#4C78A8") +
    coord_flip() +
    scale_y_continuous(
      limits = c(0, zoom_max - zoom_min),
      labels = function(x) number(x + zoom_min, accuracy = 0.001),
      expand = expansion(mult = c(0, 0.02))
    ) +
    labs(title = title, x = NULL, y = y_lab) +
    theme_minimal(base_size = 12) +
    theme(
      plot.title = element_text(face = "bold"),
      axis.text.y = element_text(size = 10),
      panel.grid.minor = element_blank()
    )
}

p_prob  <- make_zoom_bar(prob_t1,  prob,  "Probability", "Probability", zoom_min = 0)
p_frex  <- make_zoom_bar(frex_t1,  frex,  "FREX",        "FREX",        zoom_min = 0)
p_lift  <- make_zoom_bar(lift_t1,  lift,  "Lift",        "Lift",        zoom_min = 0)
p_score <- make_zoom_bar(score_t1, score, "Score",       "Score",       zoom_min = 0)

(p_prob | p_frex) / (p_lift | p_score) +
  plot_annotation(
    title = "Top 10 Words by Method (Bar Plot)",
    subtitle = "FREX/Lift use zoomed baselines; tick labels show original values"
  )

Bubble Plot

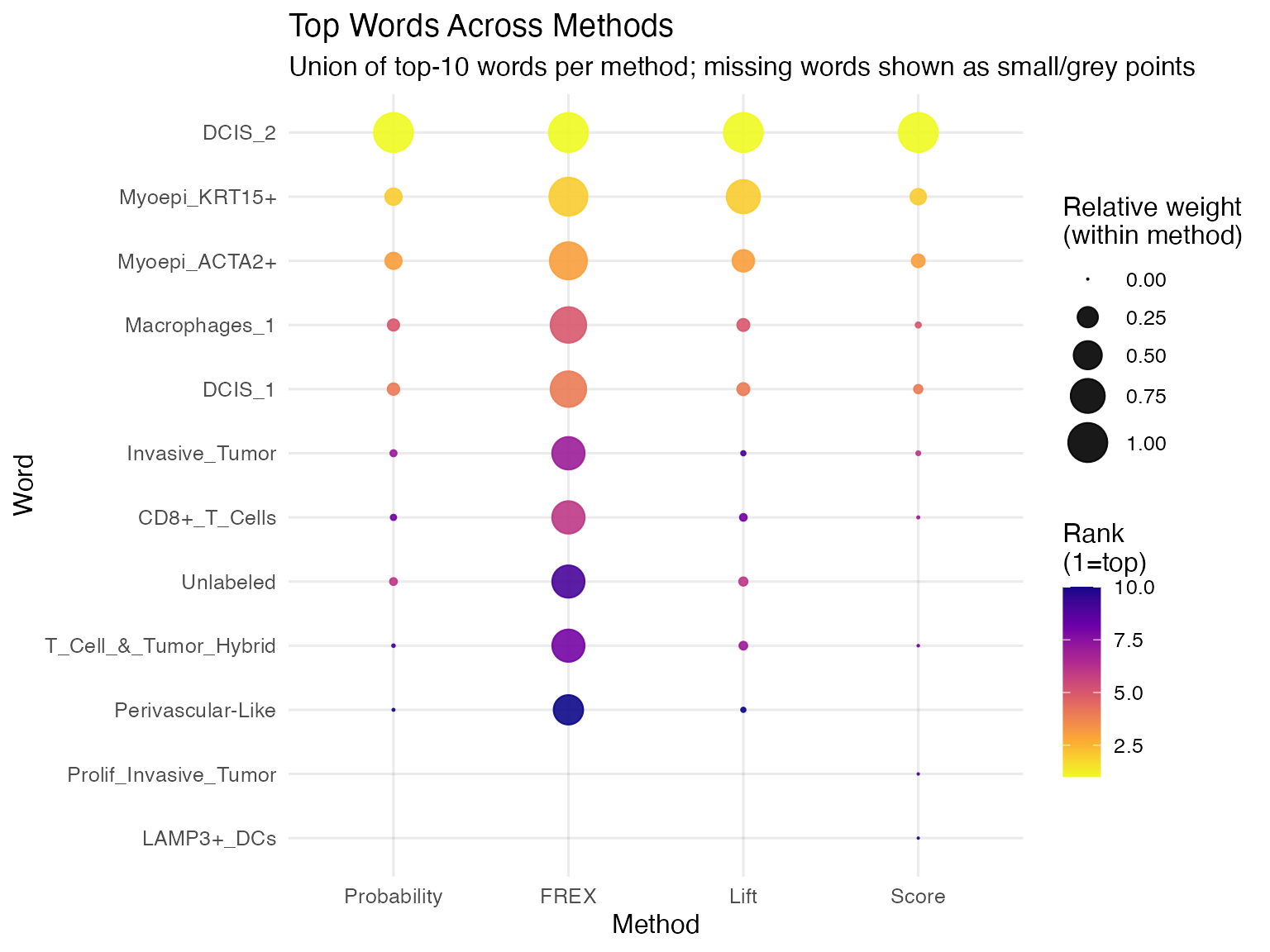

We also visualize the top features across methods using a bubble plot. Each column represents one labeling method, and each row represents a feature that appears in at least one top-10 list for Topic 1. The size of each bubble represents the relative weight of that feature within the method, while the color indicates its rank (1 = highest rank).

# helper function to grab top 10 and scale to 0-1 (used by size/circle visualizations)
get_top_10_scaled <- function(df, val_col, method_name) {
  df %>%
    rename(value = !!sym(val_col)) %>%
    slice_max(order_by = value, n = 10) %>%
    mutate(
      method = method_name,
      scaled_val = value / max(value)
    ) %>%
    select(method, word, scaled_val)
}

combined_scaled <- bind_rows(
  get_top_10_scaled(prob_t1, "prob", "Probability"),
  get_top_10_scaled(frex_t1, "frex", "FREX"),
  get_top_10_scaled(lift_t1, "lift", "Lift"),
  get_top_10_scaled(score_t1, "score", "Score")
)
get_top_n <- function(df, val_col, method_name, n = 10) {
  val_col <- ensym(val_col)
  df %>%
    transmute(word, value = !!val_col) %>%
    slice_max(value, n = n, with_ties = FALSE) %>%
    arrange(desc(value)) %>%
    mutate(
      method = method_name,
      rank = row_number(),
      scaled = value / max(value, na.rm = TRUE)
    ) %>%
    select(method, word, value, scaled, rank)
}

top_all <- bind_rows(
  get_top_n(prob_t1,  prob,  "Probability"),
  get_top_n(frex_t1,  frex,  "FREX"),
  get_top_n(lift_t1,  lift,  "Lift"),
  get_top_n(score_t1, score, "Score")
) %>%
  mutate(method = factor(method, levels = c("Probability", "FREX", "Lift", "Score")))

# complete union of words across methods
plot_df <- top_all %>%
  complete(method, word, fill = list(value = 0, scaled = 0, rank = NA))

ggplot(plot_df, aes(x = method, y = fct_reorder(word, scaled, .fun = max), size = scaled, color = rank)) +
  geom_point(alpha = 0.9) +
  scale_size(range = c(0, 8), name = "Relative weight\n(within method)") +
  scale_color_viridis_c(direction = -1, option = "C", na.value = "grey85", name = "Rank\n(1=top)") +
  labs(
    title = "Top Words Across Methods",
    subtitle = "Union of top-10 words per method; missing words shown as small/grey points",
    x = "Method", y = "Word"
  ) +
  theme_minimal(base_size = 12)

Circle Packing Plot

We can also visualize the top features using a circle packing plot. Each panel represents one labeling method, and each circle represents a top-ranked feature for Topic 1. The size of the circle reflects the relative weight of that feature within the method, so larger circles indicate stronger importance. Labels inside the circles identify the corresponding features.

generate_packing <- function(df_subset, size_col = "scaled_val", eps = 1e-6) {
  dat <- df_subset %>%
    transmute(
      word,
      method,
      size_raw = as.numeric(.data[[size_col]])
    ) %>%
    filter(is.finite(size_raw))

  # nothing usable
  if (nrow(dat) == 0) {
    return(list(vertices = tibble(), labels = tibble()))
  }

  # Make sizes strictly positive (works even if raw values are <= 0)
  dat <- dat %>%
    mutate(size = size_raw - min(size_raw, na.rm = TRUE) + eps)

  packing <- circleProgressiveLayout(dat$size, sizetype = "area")

  # Guard against any invalid circles
  ok <- is.finite(packing$x) & is.finite(packing$y) &
        is.finite(packing$radius) & packing$radius > 0
  packing <- packing[ok, , drop = FALSE]
  dat <- dat[ok, , drop = FALSE]

  if (nrow(packing) == 0) {
    return(list(vertices = tibble(), labels = tibble()))
  }

  vertices <- circleLayoutVertices(packing, npoints = 50) %>%
    as_tibble() %>%
    mutate(method = dat$method[1])

  labels <- as_tibble(packing) %>%
    mutate(
      word = dat$word,
      method = dat$method,
      size_raw = dat$size_raw
    )

  list(vertices = vertices, labels = labels)
}

# run per method
all_results <- combined_scaled %>%
  split(.$method) %>%
  map(generate_packing)

all_vertices <- map_dfr(all_results, "vertices")
all_labels   <- map_dfr(all_results, "labels")

# plot
ggplot() +
  # Draw the circles
  geom_polygon(data = all_vertices,
               aes(x, y, group = id, fill = as.factor(id)),
               colour = "white", alpha = 0.8) +
  # Add the text inside the circles
  geom_text(data = all_labels,
            aes(x, y, label = word),
            size = 3, check_overlap = TRUE) +
  # Separate into 4 panels
  facet_wrap(~method) +
  scale_fill_viridis_d(option = "plasma", guide = "none") +
  theme_void() + # Remove axes and grids for the "bubble cloud" look
  theme(
    strip.text = element_text(face = "bold", size = 12, margin = margin(b = 10)),
    plot.title = element_text(hjust = 0.5, face = "bold")
  ) +
  coord_equal() +
  labs(title = "Top 10 Words Circle Packing")

All-Topic Heatmap

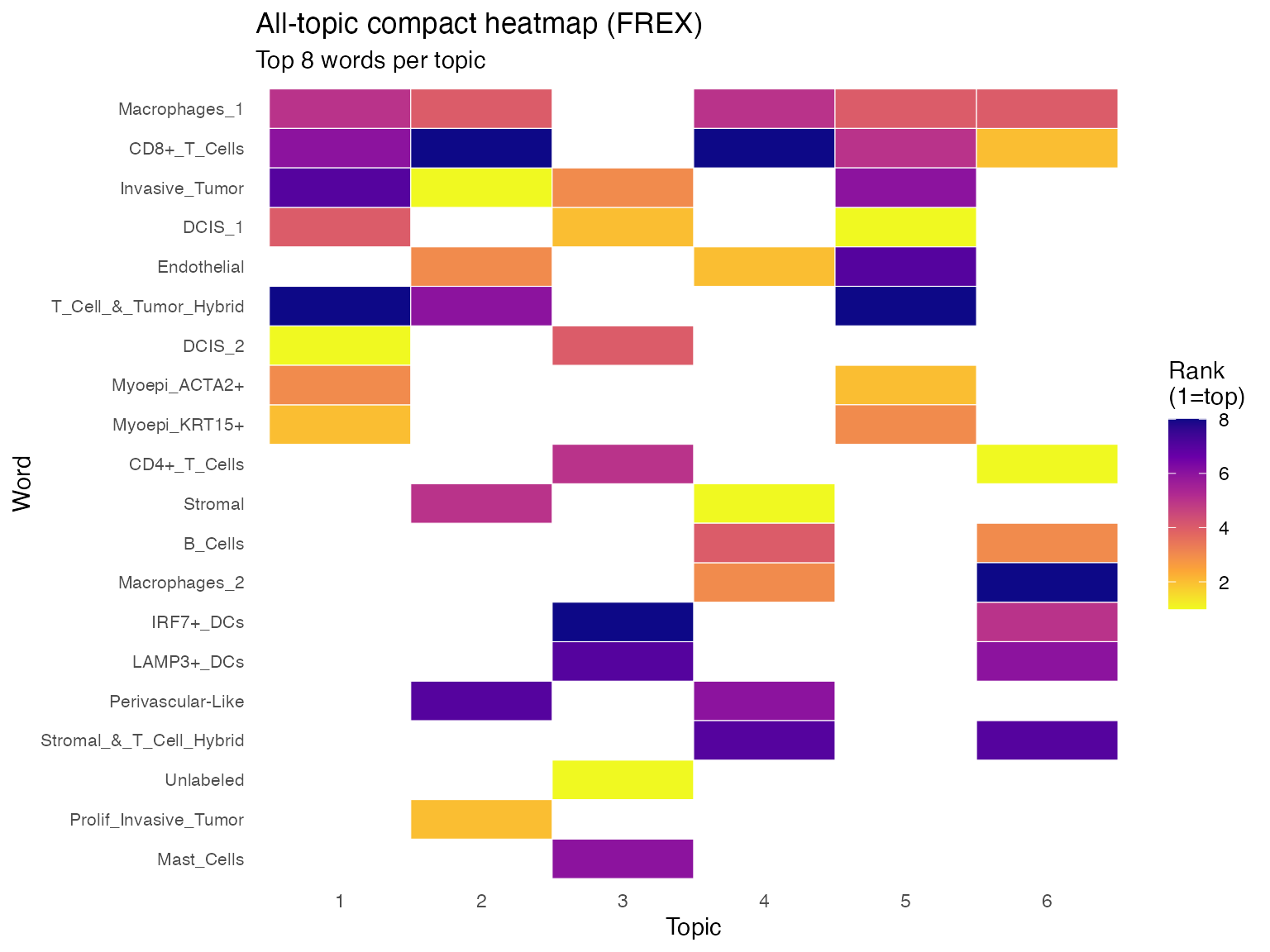

We extend the visualization to all topics using a compact heatmap. Each column represents a topic, and each row represents a feature that appears in at least one top-8 list under the FREX method. The color indicates the ranking of the feature within each topic, where lighter colors represent higher-ranked features and darker colors represent lower-ranked features. Blank spaces indicate that the feature does not appear in the top 8 for that topic.

method_for_all_topics <- "frex"  # choose one of: "prob", "frex", "lift", "score"
top_n_all_topics <- 8
frex_weight <- 0.5

K <- nrow(beta_mat)

extract_topic_method <- function(topic_id, method = "frex", top_n = 8) {
  if (method == "prob") {
    prob_topic(beta_mat, vocab, topic = topic_id, top_n = top_n) %>%
      transmute(topic = topic_id, word, value = prob)
  } else if (method == "frex") {
    frex_topic(beta_mat, vocab, topic = topic_id, top_n = top_n, frex_weight = frex_weight) %>%
      transmute(topic = topic_id, word, value = frex)
  } else if (method == "lift") {
    lift_topic(beta_mat, vocab, wordcounts, topic = topic_id, top_n = top_n) %>%
      transmute(topic = topic_id, word, value = lift)
  } else if (method == "score") {
    score_topic(beta_mat, vocab, topic = topic_id, top_n = top_n) %>%
      transmute(topic = topic_id, word, value = score)
  } else {
    stop("method must be one of: prob, frex, lift, score")
  }
}

all_topic_df <- bind_rows(lapply(seq_len(K), extract_topic_method, method = method_for_all_topics, top_n = top_n_all_topics)) %>%
  group_by(topic) %>%
  mutate(rank = rank(-value, ties.method = "first")) %>%
  ungroup()

# order words by frequency of appearance across topics, then average rank
word_order <- all_topic_df %>%
  group_by(word) %>%
  summarise(n_topics = n_distinct(topic), avg_rank = mean(rank), .groups = "drop") %>%
  arrange(desc(n_topics), avg_rank) %>%
  pull(word)

all_topic_df <- all_topic_df %>%
  mutate(
    topic = factor(topic),
    word = factor(word, levels = rev(word_order))
  )

ggplot(all_topic_df, aes(x = topic, y = word, fill = rank)) +
  geom_tile(color = "white", linewidth = 0.2) +
  scale_fill_viridis_c(direction = -1, option = "C") +
  labs(
    title = paste("All-topic compact heatmap (", toupper(method_for_all_topics), ")", sep = ""),
    subtitle = paste("Top", top_n_all_topics, "words per topic"),
    x = "Topic",
    y = "Word",
    fill = "Rank\n(1=top)"
  ) +
  theme_minimal(base_size = 11) +
  theme(
    axis.text.y = element_text(size = 8),
    panel.grid = element_blank()
  )
